VoltQuick 65W Gan

VoltQuick 65W Gan

SKU KQGN65

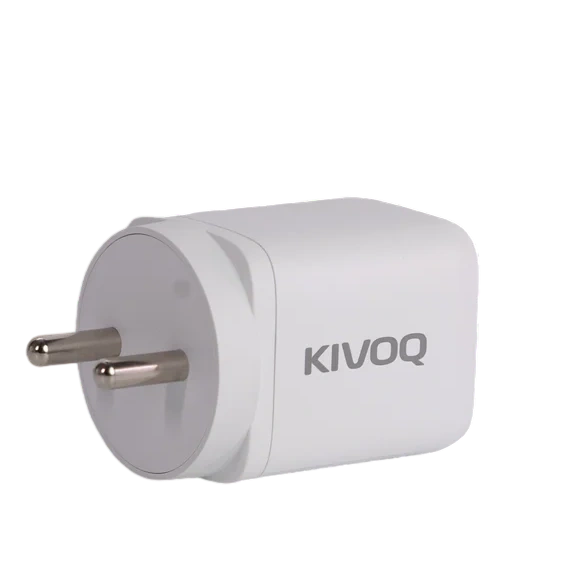

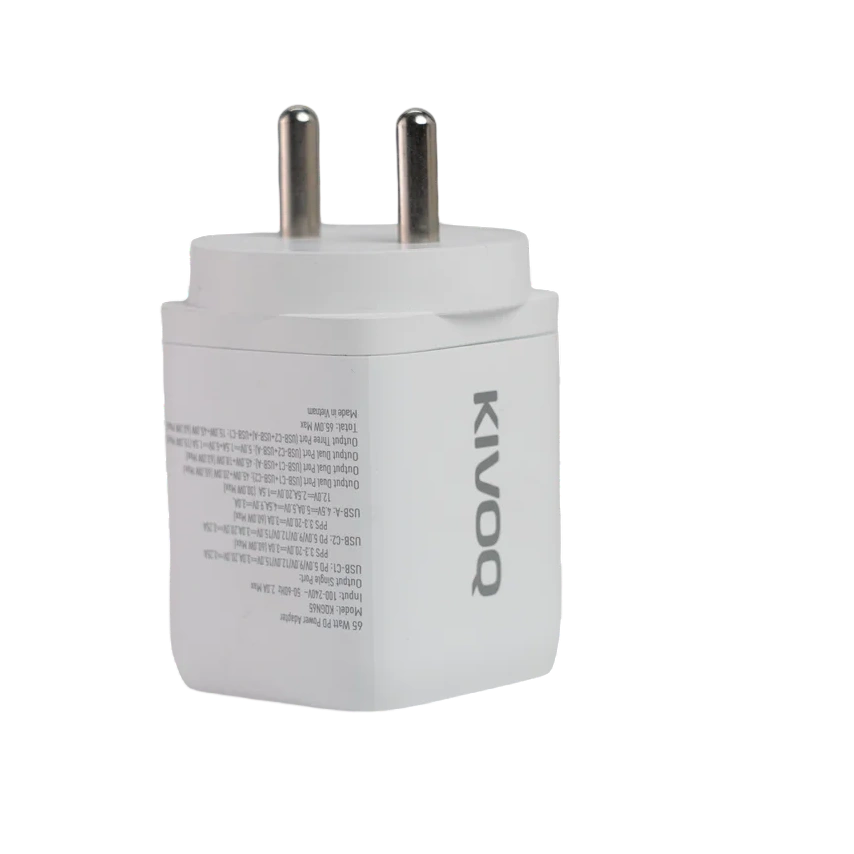

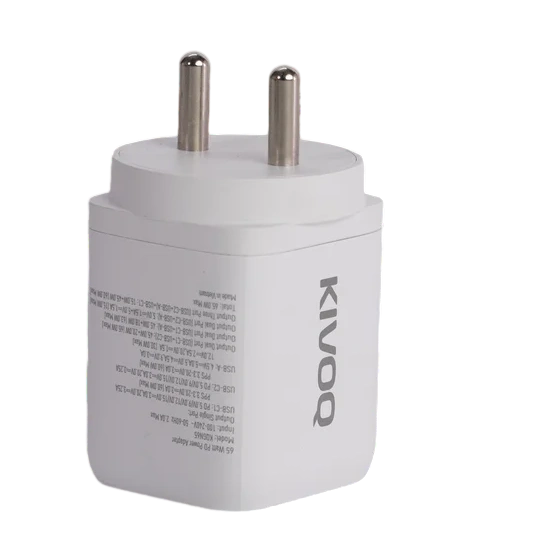

KIVOQ VoltQuick 65W Gan is a high-performance travel charger with 65W output at most. It is equipped with C + A port, and output supports up to 65W. It meets the need to charge three devices simultaneously. It is compatible with various USB protocols (such as iPhone and other smart phones, iPad, tablets).

Main Features

  • 65W power delivery + PPS for your all devices.
  • 3-port design: 2 USB-C ports + 1 USB-A port.
  • 50% Charging in 28 minutes.
  • Compact, travel-friendly size.
  • . Over Current Protection
  • . Over Voltage Protection
  • . Short Circuit Protection with Auto Recovery
  • . Over Temperature Protection with Auto Recovery
  • . Product shell made of fireproof material

Key Features

  • Internal chip allows 100-240VAC of input voltage.
  • Accurate limited current output,overload protection auto restart after troubleshooting make the product safer,and you are at ease to use
  • Over Current Protection.
  • Over Voltage Protection.
  • Short Circuit Protection with Auto-recovery.
  • Over Temperature Protection with Auto-recovery.
  • This product shell is made of fireproof material.
  • Intelligent and convenient to use, can be used with AC input lines of different countries.8;xf
  • 1x VoltQuick 65W Gan
  • Quick Start Guide
  • Warranty Card (2 Years)

Apple iPhones | MacBooks | iPads Google Pixel Series Samsung Galaxy Phones and Tabs and more

Input 100~240V AC 50/60Hz / Input Frequency 50/60Hz
Standby Input Power 0.3W / Output Output Single Port
USB-C1/C2 5V3A, 9V3A, 12V3A, 15V3A, 20V3.25A (65W, MAX)
PPS 5V-21V2.85A (60W MAX)
USB-A1 4.5V⎓5A,5V⎓4.5A,5V⎓3A,9V⎓2A,10V⎓2.25A,12V⎓1.5A(22.5W MAX)
Output Dual Port C1: 5V3A, 9V3A, 12V3A, 15V3A, 20V2.25A (45W, MAX) / PPS: 5V-16V2.8A (45W MAX) / C2: 5V3A, 9V2.2A, 12V1.67A (20W, MAX) PPS: 5V-11V1.8A (20W MAX) USB-C1+A:
C1 5V3A, 9V3A, 12V3A, 15V3A, 20V2.25A (45W, MAX) PPS: 5V-16V2.8A (45W MAX) / A: 5V3A, 9V2A, 12V1.5A (18W, MAX) USB-C2+A: / C2: 5V1.5A (7.5W, MAX) / A: 5V1.5A (7.5W, MAX)
Output Three Port USB-C1+C2+A: C1: 5V3A, 9V3A, 12V3A, 15V3A, 20V2.25A (45W, MAX) PPS: 5V-16V2.8A (45W MAX) C2: 5V1.5A (7.5W, MAX) A: 5V1.5A(7.5W, MAX)
Over Current Protection Yes
Over Voltage Protection Yes
Over Load Protection Yes
Short Circuit Protection Yes
Over Temperature Protection Yes
Port USB-C+USB-A
Socket India
Operating Temperature Range 0 ~ 25°C
Storage Temperature Range -20 ~ 85°C
Operating Relative Humidity 20% ~ 90% RH
Storage Relative Humidity 5% ~ 95% RH
Ripple And Noise ≤200mVp-p
Rise Time 20ms
Turn-on Delay 3s
Line Regulation ±3%
Efficiency ≥ 81.6% 5V+5V
≥ 85% 9V+9V
≥ 86% 12V+12V
≥ 86% 12V+15V
≥ 86% 12V+20V
Color White/Black
Size(L*W*H) 52*40.5*38(mm)
Weight 116±10g
User Manual English Version
